DS1517+

Trang chủ »Ổ cứng mạng Synology DiskStation (2GB) DS1517+
Ổ cứng mạng Synology DiskStation (2GB) DS1517+ http://thietbiluutru.com.vn

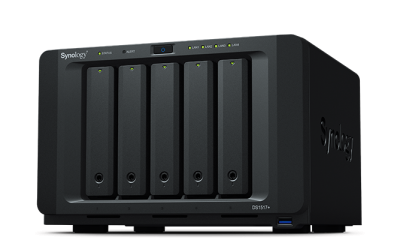

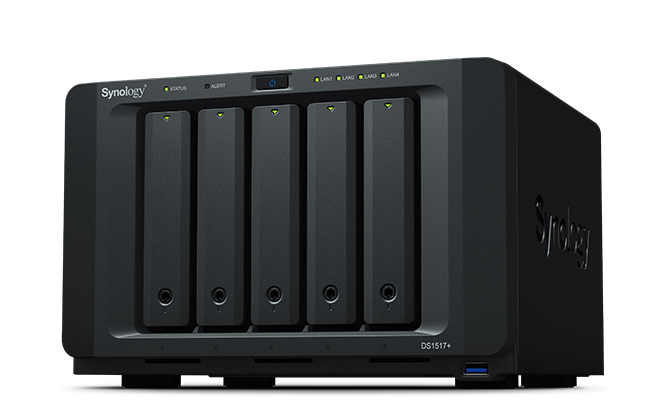

Ổ cứng mạng Synology DiskStation (2GB) DS1517+



Model:DS1517+
Tình trạng: Còn hàng

Chưa có nhận xét từ khách hàng  |  Gửi nhận xét

19.500.000 đ [Giá đã bao gồm VAT]
CPU :Intel Atom C2538 64-bit Quad Core 2.4 GHz
Ram :2GB DDR3 (Ram mở rộng lên đến 16GB có 2 khe cắm Ram)
Số lượng ngăn ổ cứng : 5
Ổ cứng tương thích :Ổ cứng 3,5 "SATA ; Ổ cứng HDD và SSD SATA 2.5"
Dung lượng nội bộ tối đa : 60TB
Cổng kết nối : x4 LAN RJ-45 1GbE ,x 4 Cổng USB 3.0, x2 eSATA Port

Bảo hành: 36 tháng



Sản phẩm tạm hết hàng. Quý khách vui lòng tham khảo các sản phẩm khác

SP cùng mức giá

Ổ cứng mạng Synology DiskStation (2GB) DS1517+

Thông tin chi tiết :

Giải pháp lưu trữ tập trung với hiệu suất vượt trội

 Ổ cứng mạng Synology DiskStation (2GB) DS1517+ là một ổ cứng NAS có 5 khe cắm ổ cứng được cung cấp bởi một CPU quad-core với công nghệ mã hóa phần cứng AES-NI. Đi kèm với cổng LAN Quad Quad 1GbE, nó có thể được cài đặt bằng thẻ giao diện mạng 10GbE hoặc card M.2 SSD adapter đôi, qua đó tăng tốc độ mạng hoặc tăng hiệu suất với bộ nhớ đệm SSD.

Ổ cứng NAS Synology DiskStation (2GB) DS1517+ tối ưu lưu trữ của bạn với hiệu suất nhanh

 Ổ cứng mạng Synology DS1517 + được trang bị bộ nhớ kênh đôi và khe PCIe, DS1517 + hỗ trợ cài đặt thẻ nhớ M.2 SSD 2 lớp, M2D17 hoặc 10GbE NIC, cho bộ nhớ cache của hệ thống IOPS cao và truyền dữ liệu cực nhanh.

Quản lý và chia sẻ file tốt nhất

 File Station là một công cụ quản lý dựa trên web, nhanh chóng và an toàn được xây dựng để cho phép thao tác dễ dàng, kéo và thả mà không yêu cầu bất kỳ thiết lập phức tạp nào trên máy Mac hoặc PC. Công cụ tìm kiếm và lọc nâng cao cho phép dễ dàng tổ chức và chia sẻ các tập tin chỉ bằng một liên kết. Hỗ trợ SMB, FTP, AFP, NFS, WebDAV, tương thích với mọi môi trường.

Hợp tác thời gian thực trên đám mây riêng của bạn

Office là một gói hợp tác kết hợp sự tiện lợi và khả năng sử dụng các đám mây công cộng với sự riêng tư và bảo mật dữ liệu được đảm bảo bởi các đám mây riêng. Nó cho phép bạn làm việc liền mạch với nhau trên các tài liệu và bảng tính trong một môi trường được bảo vệ.

Thông số kỹ thuật

Hardware Specifications
CPU
CPU Model Intel Atom C2538
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 2/8 GB DDR3
Memory Module Pre-installed 2GB (1 x 2GB) / 8GB (2 x 4GB)
Total Memory Slots 2
Memory Expandable up to 16 GB (8 GB x 2)
Storage
Drive Bays 5
Maximum Drive Bays with Expansion Unit 15
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 60 TB (12 TB drive x 5) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 180 TB (60 TB + 12 TB drive x 10) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB.

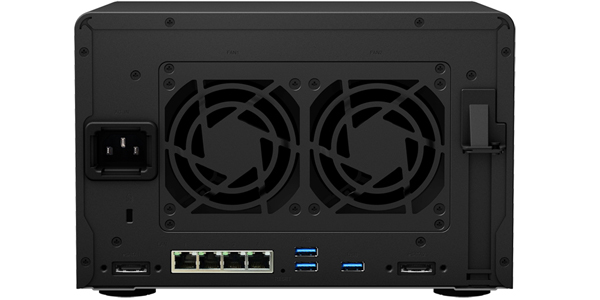

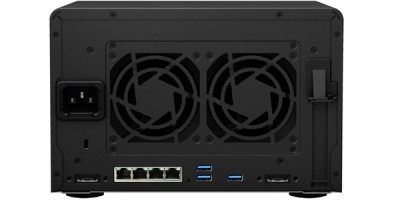

External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.0 Port 4
eSATA Port 2
PCIe
PCIe Expansion 1 x Gen2 x8 slot (x4 link)
Add-in-card support
Notes DS1517+ with M2D17 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported.
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 166 mm x 250 mm x 243 mm
Weight 4.46 kg
Others
System Fan 80 mm x 80 mm x 2 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Brightness adjustable front LED indicators
Power Recovery
Noise Level* 26.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 200W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 42.1 W (Access)
23.1 W (HDD Hibernation)
British Thermal Unit 143.7 BTU/hr (Access)
78.9 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 3 Year Hardware Warranty, Extendable to 5 Year Coverage - EW201
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 512
Maximum iSCSI Target Number 32
Maximum iSCSI LUN 256
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 8
Maximum Concurrent CIFS/AFP/FTP Connections 512(2GB) / 2048(8GB)
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second 800
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users 1500
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 512 (2GB) / 2000 (8GB)
Maximum Number of Concurrently Connected Devices (with RAM expansion) 2000
Maximum Number of Synced Files (btrfs) 1,000,000 / single file reaction time 846 (2GB) / 907 (8GB) ms
Maximum Number of Synced Files (ext4) 1,000,000 / single file reaction time 566 (2GB) / 517 (8GB) ms
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks 80
Drive
Maximum Number of Synced Files 1,000,000 / single file reaction time 437 ms
Maximum Number of Concurrent Connections for PC Clients 550
Notes
  • The Btrfs file system was used for the purpose of testing.
  • The maximum number of concurrent connections refers to the maximum number of connections that could be maintained when the maximum number of synced files was reached.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts 5 (Licenses required for additional accounts)
Recommended MailPlus Client Number Up to 90(btrfs)/100(ext4)
Maximum Server Performance 712,000 emails per day, approx. 21.73GB
Notes
  • The CPU and RAM usages were both under 80% when testing recommended client numbers.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
Office
Maximum Users 1800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Snapshot Replication
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536
Surveillance Station
Maximum IP cam (Licenses required) 40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 1200 (2GB RAM) / 1200 (8GB RAM) FPS @ 720p (1280x720)
900 (2GB RAM) / 1080 (8GB RAM) FPS @ 1080p (1920×1080)
320 (2GB RAM) / 480 (8GB RAM) FPS @ 3M (2048x1536)
270 (2GB RAM) / 280 (8GB RAM) FPS @ 5M (2591x1944)
120 (2GB RAM) / 160 (8GB RAM) FPS @ 4K (3840x2160)
Total FPS (H.265)* 1200 (2GB RAM) / 1200 (8GB RAM) FPS @ 720p (1280x720)
1200 (2GB RAM) / 1200 (8GB RAM) FPS @ 1080p (1920×1080)
560 (2GB RAM) / 1120 (8GB RAM) FPS @ 3M (2048x1536)
300 (2GB RAM) / 760 (8GB RAM) FPS @ 5M (2591x1944)
200 (2GB RAM) / 480 (8GB RAM) FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 540 (2GB RAM) / 760 (8GB RAM) FPS @ 720p (1280x720)
200 (2GB RAM) / 400 (8GB RAM) FPS @ 1080p (1920×1080)
150 (2GB RAM) / 280 (8GB RAM) FPS @ 3M (2048x1536)
90 (2GB RAM) / 200 (8GB RAM) FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding Group 1 - Type 1 (See more)
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager
Maximum Virtual DSM Number (Licenses required) 4 (including 1 Free License) (Learn more)
Notes Virtual Machine Manager is not supported on hosts running Synology High Availability.
VPN Server
Maximum Connections 20
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • RAM1600DDR3L-4GBx2 DDR3 non-ECC SO-DIMM kit
  • RAM1600DDR3L-8GBx2 DDR3 non-ECC SO-DIMM kit
  • Expansion Unit: DX517 X 2
  • VS360HD
  • VS960HD
  • Synology Ethernet Adapter E10G15-F1
  • Synology Ethernet Adapter E10G17-F2
  • Synology M2D17 M.2 SSD adapter card
General
Networking Protocols
  • CIFS
  • AFP
  • NFS
  • FTP
  • WebDAV
  • CalDAV
  • iSCSI
  • Telnet
  • SSH
  • SNMP
  • VPN (PPTP, OpenVPN)
Windows AD Domain Integration Domain Users login via Samba/AFP/FTP/File Station
HDD Management
  • HDD Hibernation
  • S.M.A.R.T.
  • Dynamic Bad Sector Mapping
Security
  • FTP over SSL/TLS
  • IP Auto-Block
  • Firewall
  • Encrypted Network Backup over Rsync
  • HTTPS Connection
Utilities Synology Assistant
Supported Clients
  • Windows 7 and 10
  • Mac OS X 10.11 onward
Supported Browsers
  • Chrome
  • Firefox
  • Internet Explorer 10 onwards
  • Safari 10 onwards
  • Safari (iOS 10 onwards)
  • Chrome (Android 6.0 onwards)
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, 日本語, 한국어, 繁體中文, 简体中文
